Meca-Inox PY4CY-Cryogene
RX Code: KYC

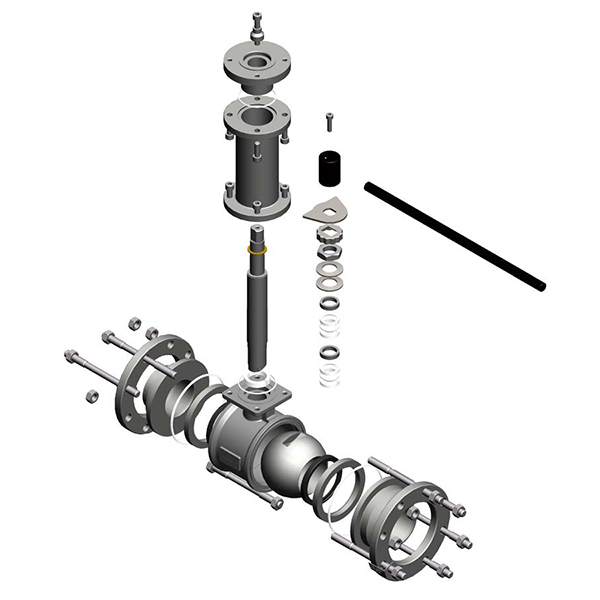

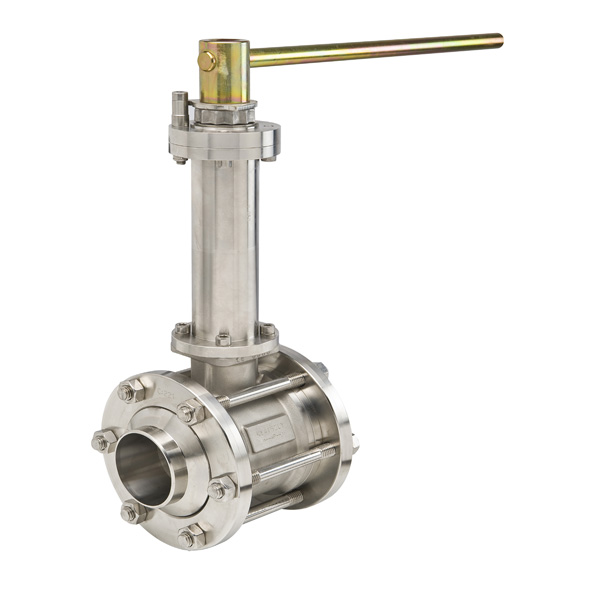

The PY4-CY stainless steel ball valve is specially designed for cryogenic applications. It is used for applications such as liquid nitrogen and LNG, and can operate at temperatures as low as -196ºC. The ball valve is equipped with a pressure relief hole to prevent excessive pressure build-up in the cavity. The PY4-CY features a modular design and can be configured with various operating handles and actuators.
Make you configuration
Specifications:
Sizes | DN 8 to DN 100 Full Bore, Reduced Bore |
Max. pressure* | 100 bar |
Temp. range | -196°C to +200°C |
Type of connections | Butt weld, Socket weld, Draad (NPT en BSP), Flens |
Standards | ISO, ASME, DIN, SMS, S10, S40 |
Material | – Body, Ball, Connections: 1.4409 (316L) – Seat: TF 3215 (PTFE + Carbon) |
Operation | manual or actuator (electric or pneumatic) |
Certificates | 3.1, CE (PED), NEN-EN 1626:2008, CE1934/2004 |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
Documents:
Datasheet PY4-CY Cryogenic ball valve
English 974 KB ver. 15.0
Datasheet PY4-CY Cryogenic ball valve actuated
English 461 KB ver. 15.0
