Meca-Inox PY4CY Bronze-Medical liquid oxygen
RX Code: KYL

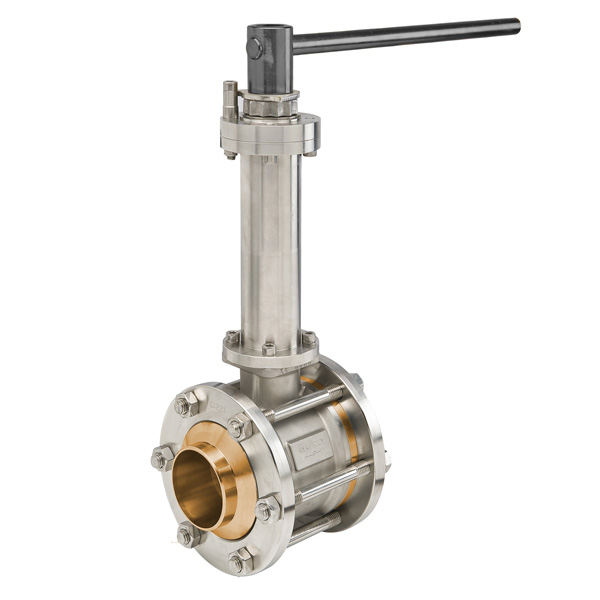

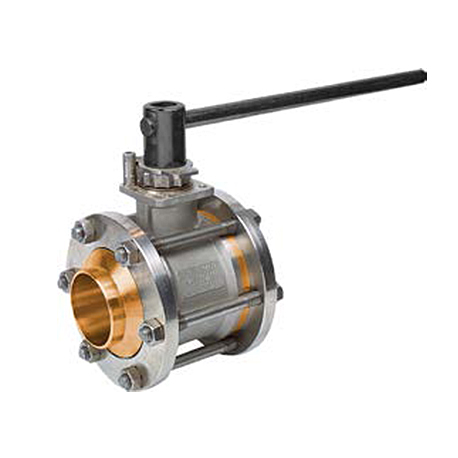

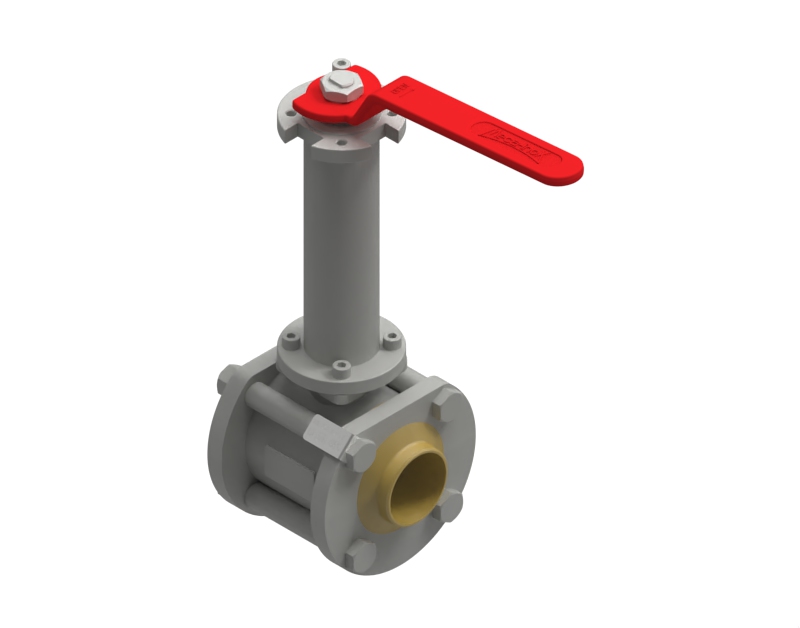

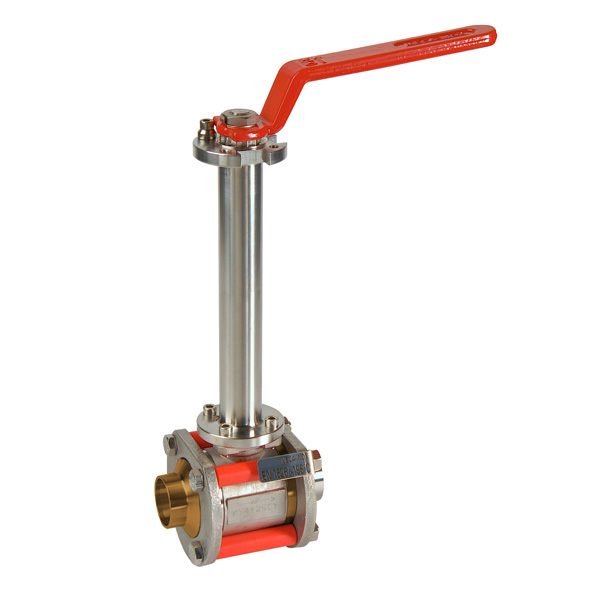

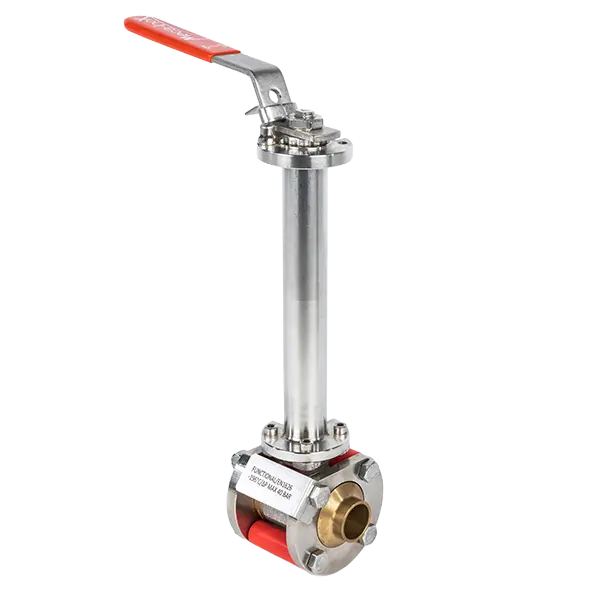

Meca-Inox PY4CY cryogenic ball valve – bronze/stainless steel, specially designed for medical oxygen applications down to -196°C. Equipped with a pressure relief hole to prevent cavity overpressure. Modular design fits various handles and actuators.
Benefits:

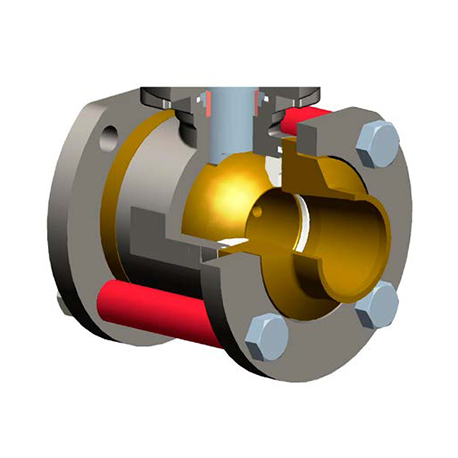

- Pressure relief hole prevents overpressure in closed position
- Suitable for liquid oxygen, rated to -196°C, delivered fully degreased
Make you configuration
Specifications:
| Sizes | DN 8 to DN 100 Full Bore, Reduced Bore |
| Max. pressure* | 100 bar |
| Temp. range | -196°C to +200°C |
| Type of connections | Butt weld, Socket weld, Draad (NPT en BSP), Flens |
| Standards | ISO, ASME, DIN, SMS, S10, S40 |
| Material | – Body: 1.4409 (316L) – Connections: CC 491K (Brons) – Ball: CW 425K (Brons) – Seat: TF 3215 (PTFE + Carbon) |
| Operation | manual or actuator (electric or pneumatic) |
| Certificats | 3.1, CE (PED), NEN-EN 1626:2008, CE1934/2004 |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
Documents:
Datasheet PY4-CY Bronze / Stainless steel
English 253 KB ver. 15.0
Maintenance and Installation PY4CY
