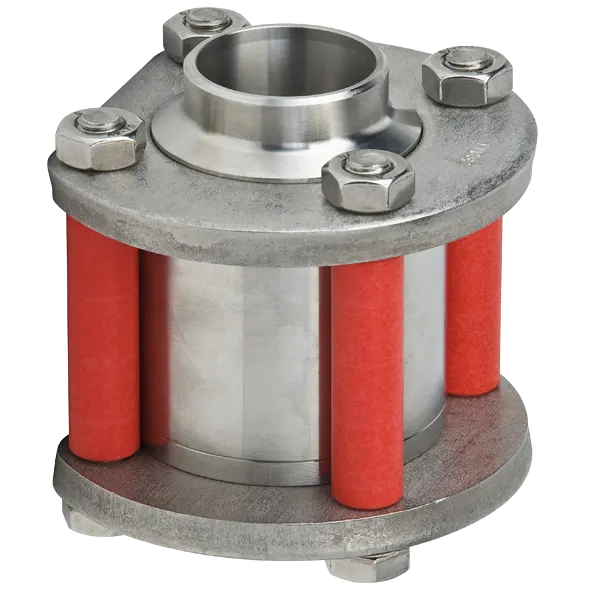

Meca-Inox check valve

RX Code: TMF

Stainless steel check valves prevent backflow of liquids and are suitable for vertical installation.

sizes	DN 8 to DN 50 Full Bore, Reduced Bore
Max. pressure*	80 bar
Temp. range	-200°C to +200°C
Type of connections	Butt weld, Socket weld, Draad (NPT en BSP), Compression fittings, Tri-clamp, Orbitale las
Standards	ISO, ASME, DIN, SMS, S10, S40
Material	– Body, Connecions: 1.4404 (316L) – Seat: PTFE
Certificates	3.1, CE (PED)

* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
