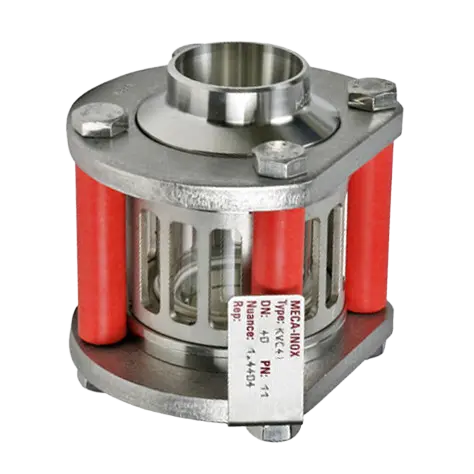

Meca-Inox Sight Glass

RX Code: SMF

This full-view sight glass provides a clear view of the process in a sterile application.

Sizes	DN 10 to DN 50 Full Bore, Reduced Bore
Max. pressure*	17 bar
Temp. range	-50°C to +200°C
Type of connections	Butt weld, Socket weld, Draad (NPT en BSP), Tri-clamp, Orbitale las
Standards	ISO, ASME, DIN, SMS, S10, S40
Material	– Body, Connections: 1.4404 (316L) – Glass: PYREX – Seat: PTFE
Certificates	3.1 material, FDA, USP Class VI 121°C, {87}, {88}, PED, TSE/BSE

* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
