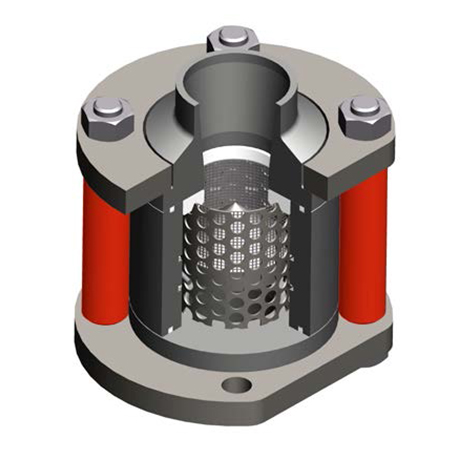

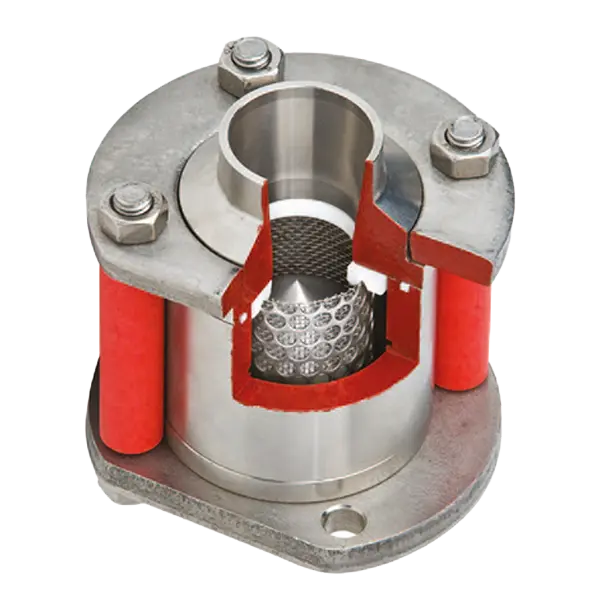

Meca-Inox filter

RX Code: FAA

Filter grades: 0.45 mm for DN10 to DN20 and 0.8 mm for DN25 to DN50.

Sizes	DN 10 to DN 50 Full Bore, Reduced Bore
Max. pressure*	100 bar
Temp. range	-50°C to +200°C
Type of connections	Butt weld, Socket weld, Draad (NPT en BSP), Tri-clamp, Orbitale las
Standards	ISO, ASME, DIN, SMS, S10, S40
Material	– Body, Connections: 1.4404 (316L) – Seat: PTFE
Certificates	3.1, CE (PED)

* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.

Datasheet FL4 Filter
English 325 KB ver. 15.0
