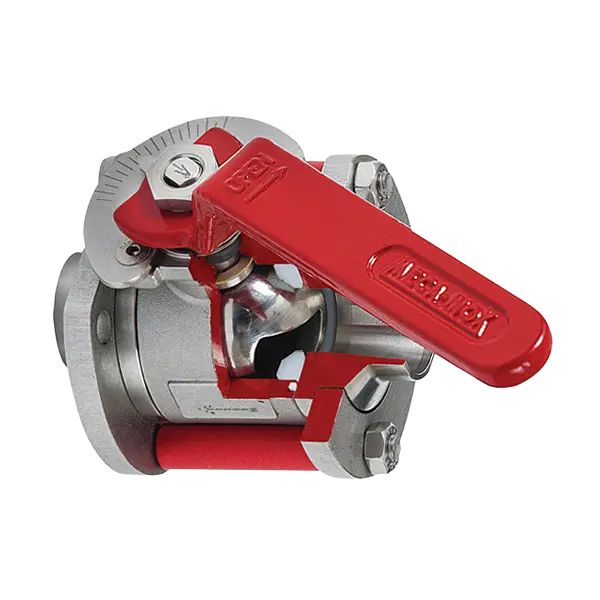

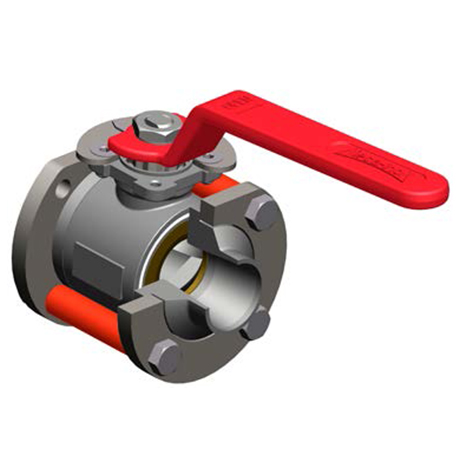

Meca-Inox V-ball
RX Code: BY3 / KY6
Control valve for precise flow control in chemical, cryogenic, pharmaceutical, and food applications. Suitable for liquids and gases.
Benefits:
- Precision valve for controlled flow of liquids and gases
- Ideal for dosing and control processes requiring high accuracy
Make you configuration
Specifications:
| Sizes | DN 15 to DN 50 |
| Max. pressure* | 100 bar |
| Temp. range | -30°C to +280°C |
| Type of connections | Butt weld, Socket weld, Thread (NPT and BSP), Compression fittings, Triclamp ends, Orbital welding, DIN 11851 |
| Standards | ISO, ASME, DIN, SMS, S10, S40 |
| Material | – Huis, kogel, aansluting: 1.4404 (316L) – Zittingen: PTFE with 20% PEEK |

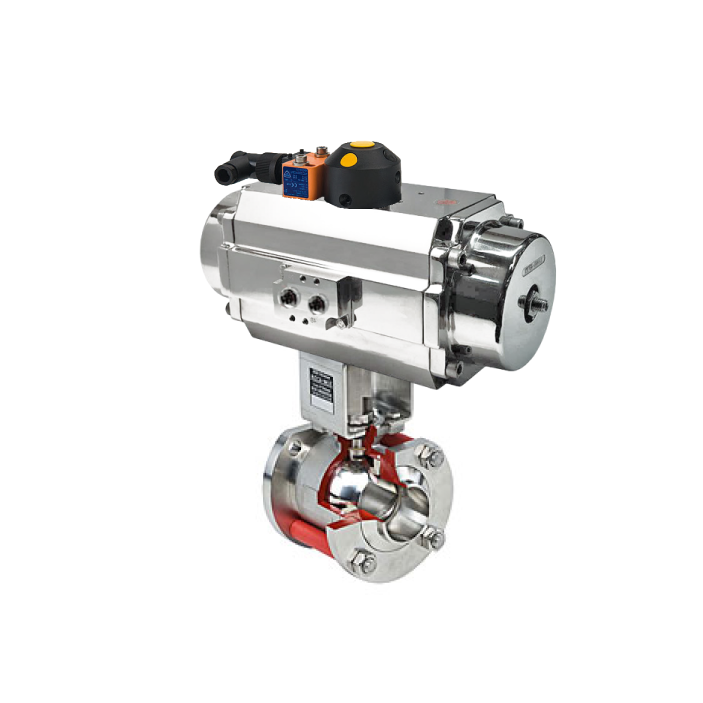

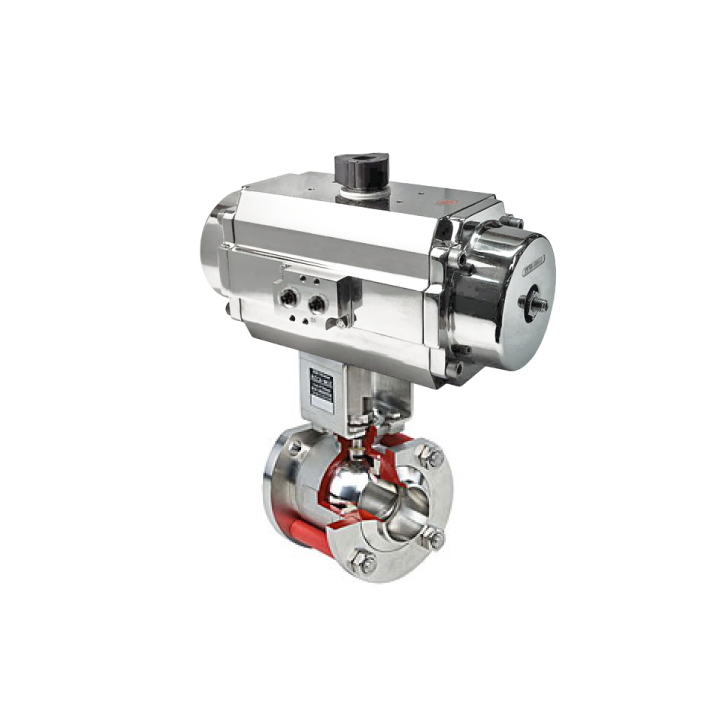

| Operation | manual or actuator (electric or pneumatic) |
| Certificates | 3.1, CE (PED), CE1934/2004 |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
