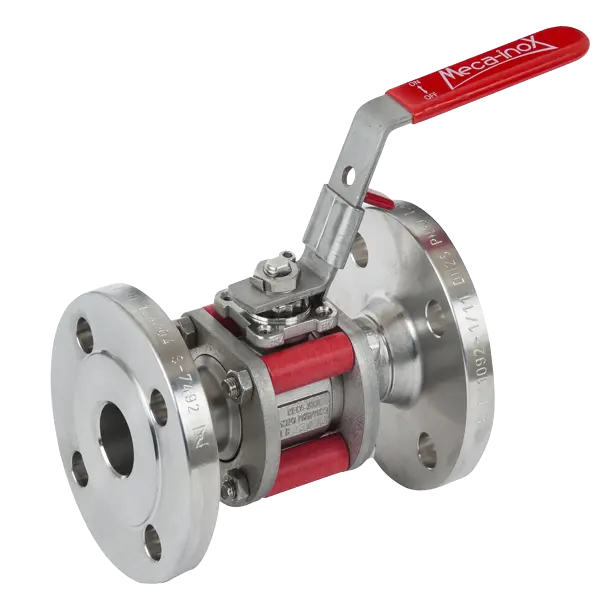

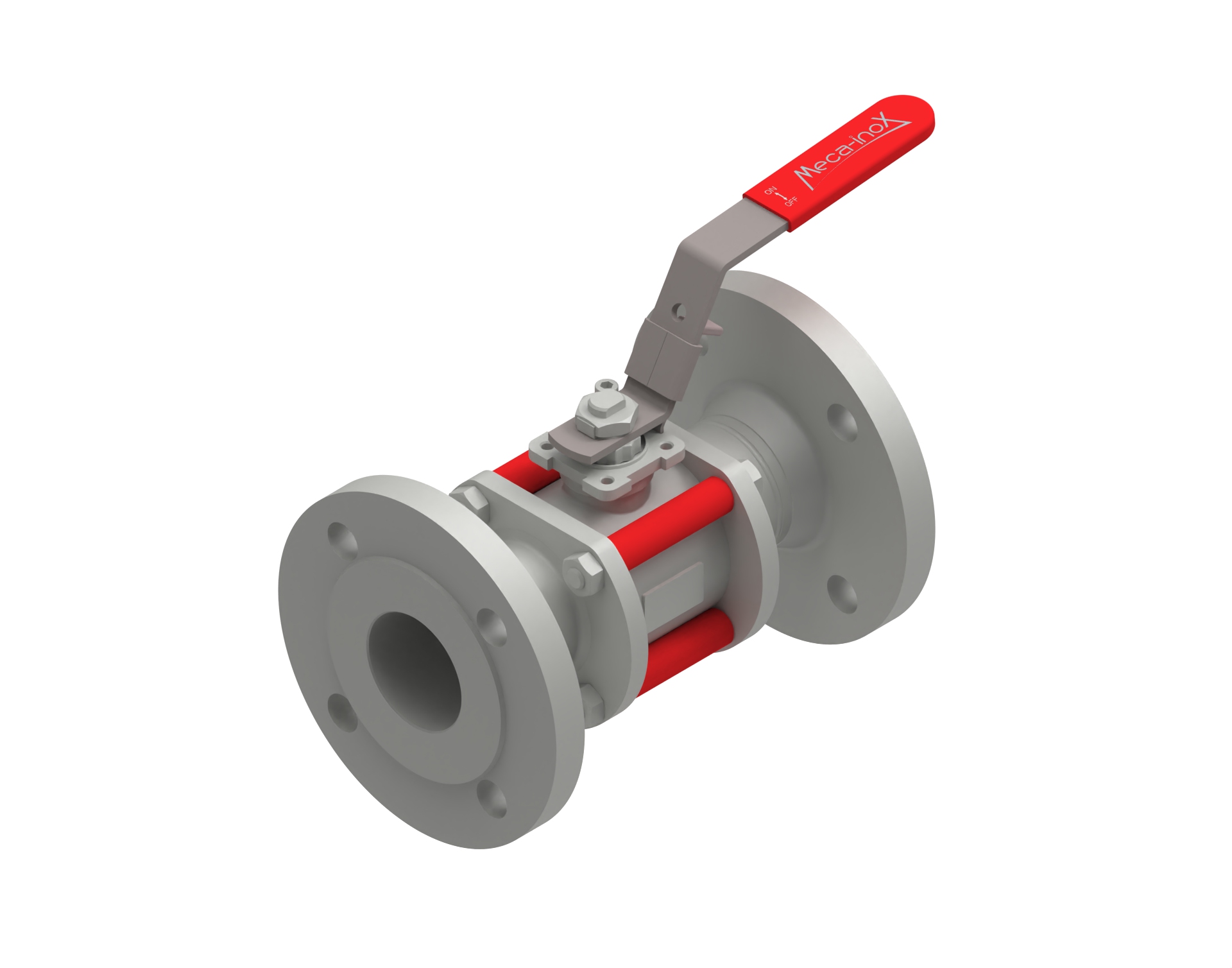

Meca-Inox PS4 Ball Valve, flanged
RX Code: KLA
The Meca-Inox PS4-B4 is a high-quality stainless steel ball valve with flanged connection, designed for general industrial applications where a flanged connection is preferred over the standard welded connection.
Benefits:
- Flanged version as an alternative to welded connection
- Unique swivel connection part
- Modular system with wide compatibility
Make you configuration
Specifications:
| Sizes | DN 15 to DN 200 Full Bore, Reduced Bore |
| Max. pressure* | 40 bar |
| Temp. range | -50°C to +190°C |
| Type of connections | Flens (DIN 2501) |
| Material | – Body, Connections: 1.4409 (316L) – Seat: PTFE |
| Operation | manual or actuator (electric or pneumatic) |
| Certificates | 3.1, CE (PED) |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
Documents:
Datasheet PS4 – B4 Flanged
English 835 KB ver. 15.0
