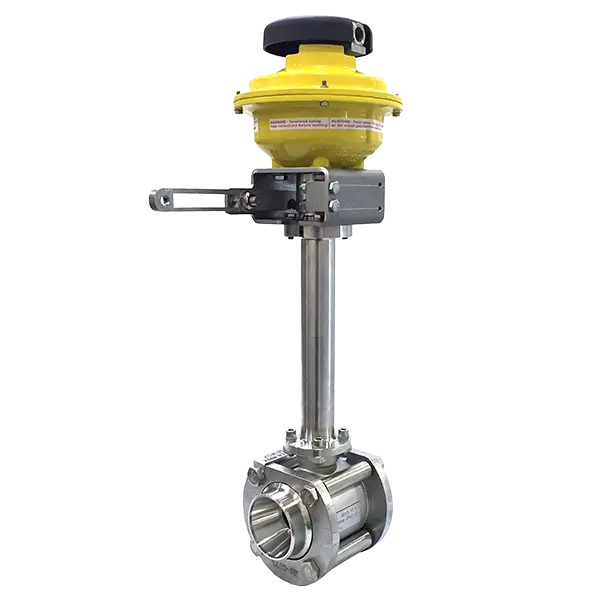

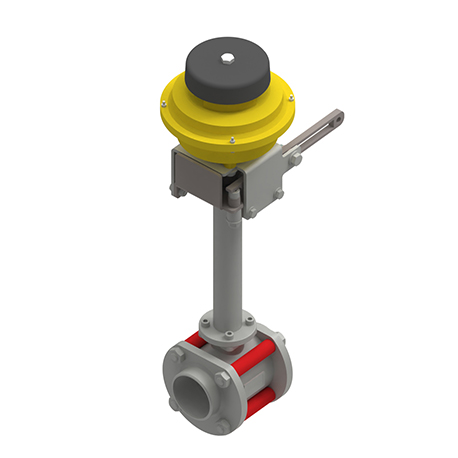

Meca-Inox PY4CY-LNG Fire Block
RX Code: KYG
Safe, autonomously operating ball valve for LNG. Automatically closes in case of fire via thermal fuse or manually via cable.
Benefits:
- Spring-actuated closure requires no air or electric power
- Closes in the event of fire via fusible link or manual cable operation
- Fully autonomous system for maximum safety in LNG applications
Make you configuration
Specifications:
| Sizes | DN 8 to DN 50 Full Bore, Reduced Bore |
| Max. pressure* | 100 bar |
| Temp. range | -196°C to +200°C |
| Type of connections | Butt weld, Socket weld, Draad (NPT en BSP), Flens |
| Standards | ISO, ASME, DIN, SMS, S10, S40 |
| Material | – Body, Ball, Connections: 1.4409 (316L) – Seat: TF 3215 (PTFE + Carbon) |
| Operation | manual or actuator (electric or pneumatic) |
| Certificates | 3.1, CE (PED), NEN-EN 1626:2008 |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
Documents:
Datasheet Emergency shut-off
English 222 KB ver. 15.0
