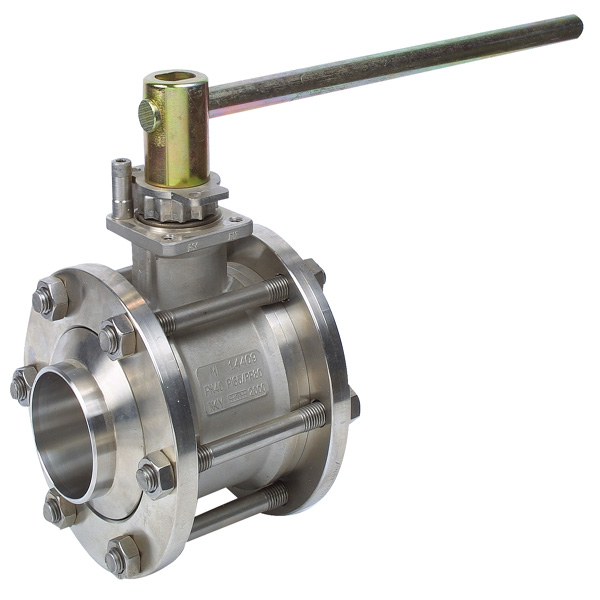

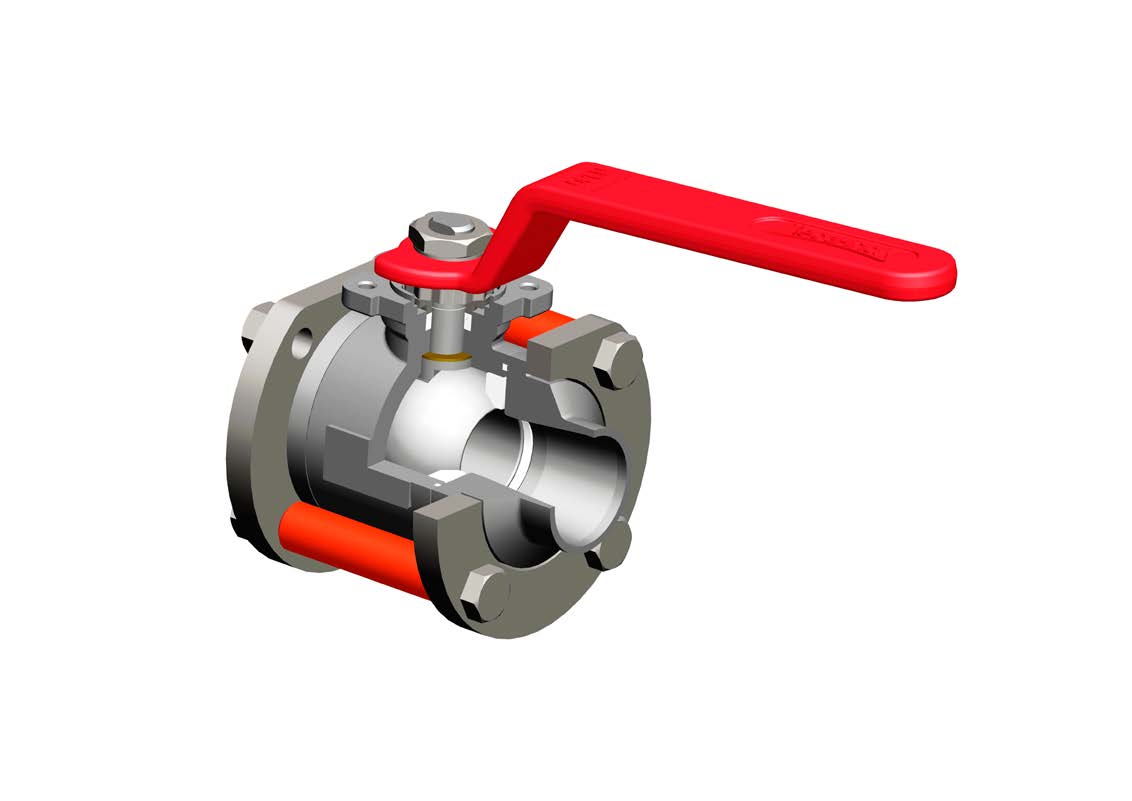

Meca-Inox PY4-Cryogene Ball Valve
RX Code: KYA
Meca-Inox PY4 stainless steel ball valves for light cryogenic applications down to -50°C, ideal for ammonia and CO₂ systems.
Benefits:
- Swivel connection for quick and easy installation

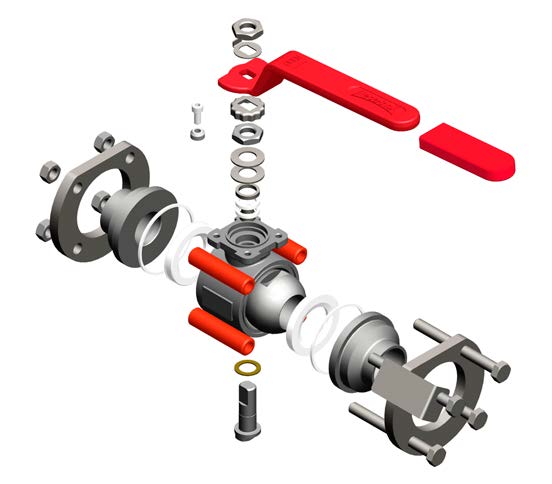

- Modular design with a choice of various handles and actuators
Make you configuration
Specifications:
Sizes | DN 8 to DN 125 Full Bore, Reduced Bore, True Bore |
Max. pressure* | 100 bar |
Temp. range | -50°C to +190°C |
Type of connections | Butt weld, Socket weld, Draad (NPT and BSP), Flens |
Standards | ISO, ASME, DIN, SMS, S10, S40 |
Material | – Body, Connections 1.4404 (316L) – Seat: TF3215 (PTFE + Carbon) |
Operation | manual or actuator (electric or pneumatic) |
Certificates | 3.1, CE (PED), NEN-EN 1626:2008, CE1934/2004 |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
Documents:
Datasheet PY4 Ball Valve
English 3,29 MB ver. 15.0
