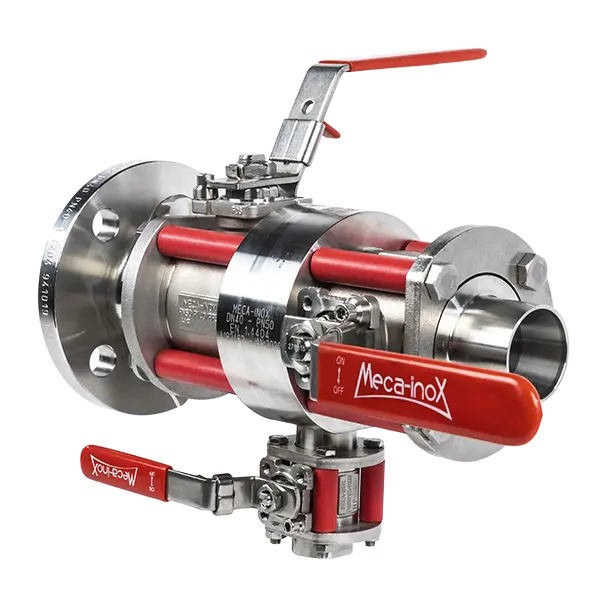

Meca-Inox PS4 DBB double block and bleed
RX Code: KJL

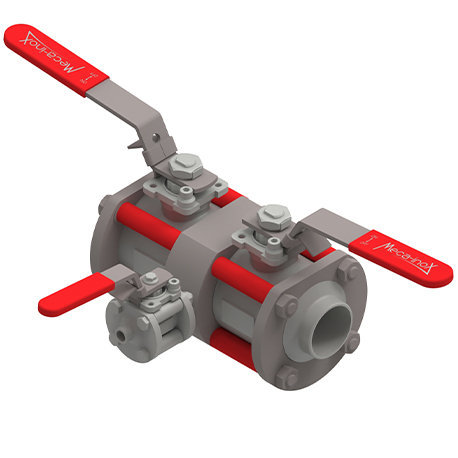

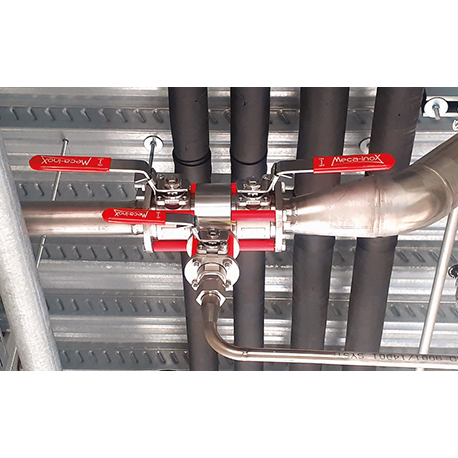

The Double Block & Bleed ball valve ensures safe pipeline isolation during maintenance. The PS4 DBB has a modular design with various handle and actuator options – even combinations are possible. It guarantees complete isolation of hazardous liquids during maintenance, protecting both installers and operators.
Benefits:
- ATEX version available
- Cavity filler
- Bleed valve
Make you configuration
Specifications:

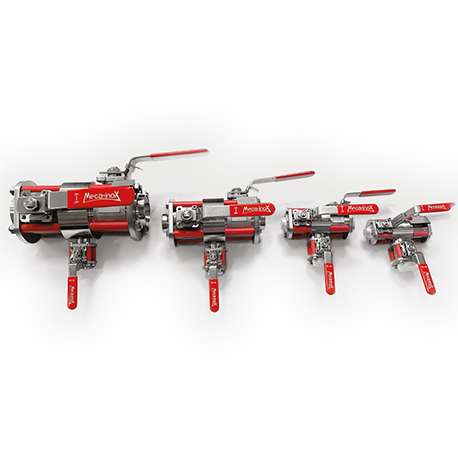

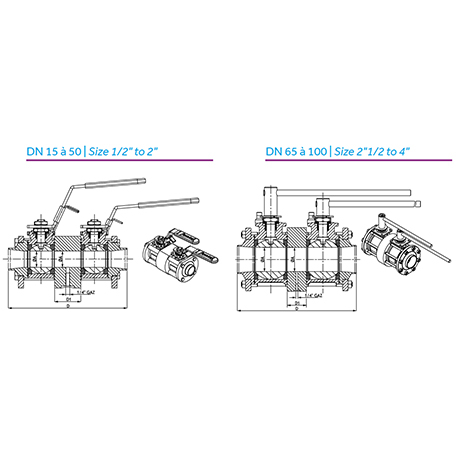

| Sizes | DN 15 to DN 100 Reduce bore, Full bore, True bore |
| Max. pressure* | 100 bar |
| Temp. range | -30°C to +280°C |
| Standards | ISO, ASME, DIN, SMS, S10, S40 |
| Type of connections | Butt weld, Socket weld, Thread (NPT and BSP), Compression fittings, Triclamp ends, Orbital welding, DIN 11851 |
| Material | – Huis, kogel, aanslutingen: 1.4404 (316L) – Zittingen: PTFE with 20% PEEK |
| Operation | manual or actuator (electric or pneumatic) |
| Certificats | 3.1, FDA, CE (PED), CE1934/2004 |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
Documents:
Datasheet PS4 DBB Double Block & Bleed
English 420 KB ver. 15.0
Video
No Step Files Available Yet
Check back later
