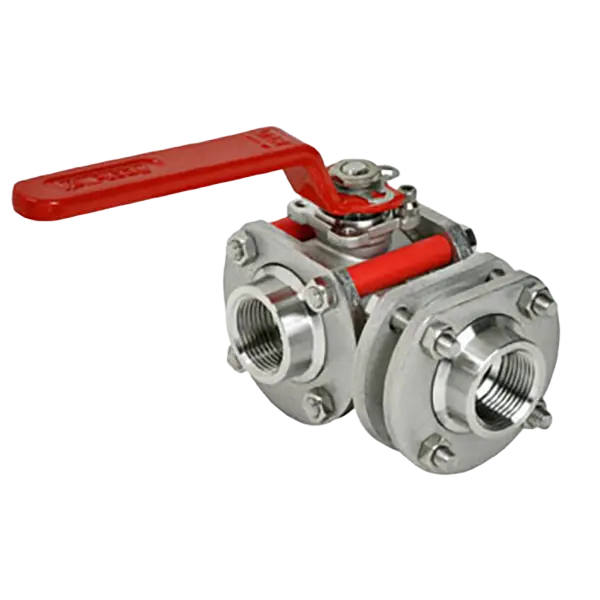

Meca-Inox PS4 3-way Ball Valve
RX Code: KYI – KYJ

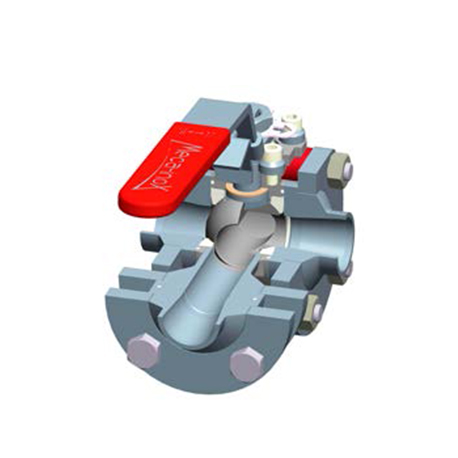

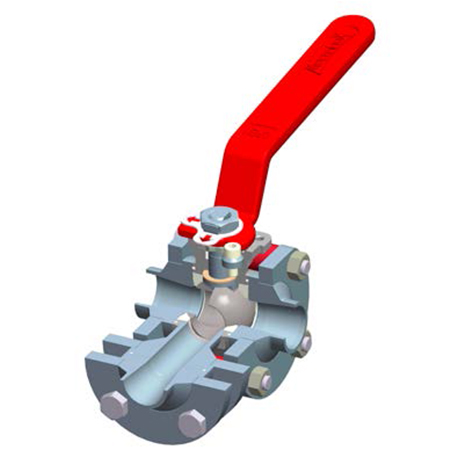

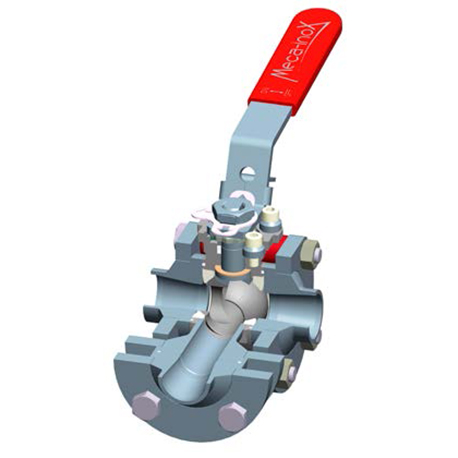

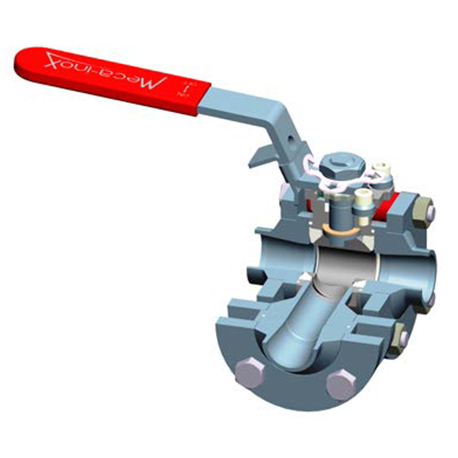

This is a special three-way version of the standard PS4 ball valve. Several configurations are available: a horizontal L-type for diverting flow, a horizontal T-type for diverting or mixing, and a vertical L-type for diverting or shut-off.
Make you configuration
Specifications:
| Sizes | DN 10 to DN 100 Full Bore, Reduced Bore |
| Max. pressure* | 100 bar |
| Temp. range | -50°C to +190°C |
| Type of connections | Butt weld, Socket weld, Draad (NPT en BSP), Tri-clamp, Orbitale las, DIN 11851 |
| Standards | ISO, ASME, DIN, SMS, S10, S40 |
| Material | – Body, Connections: 1.4404 (316L) – Seat: TFM1600 |

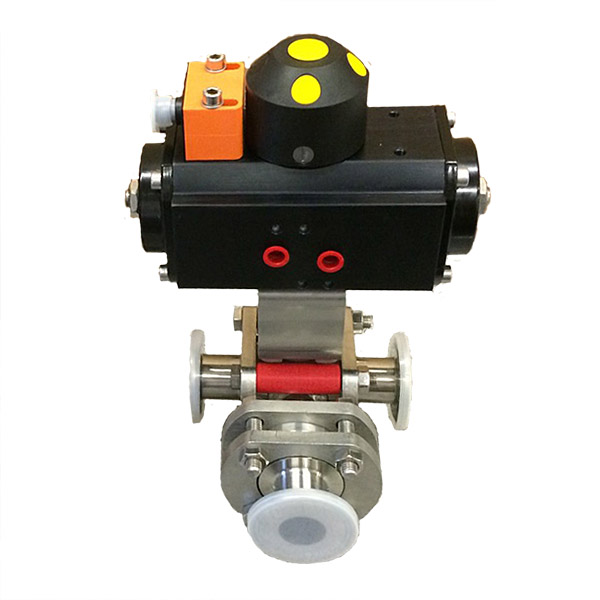

| Operation | manual or actuator (electric or pneumatic) |
| Certificates | 3.1, FDA, CE (PED) |
* Max. pressure depends on the temperature and bore size. See the Pressure/Temperature diagram for more information.
Documents:
Datasheet PS4 3-way ball valve
English 451 kB ver. 15.0
